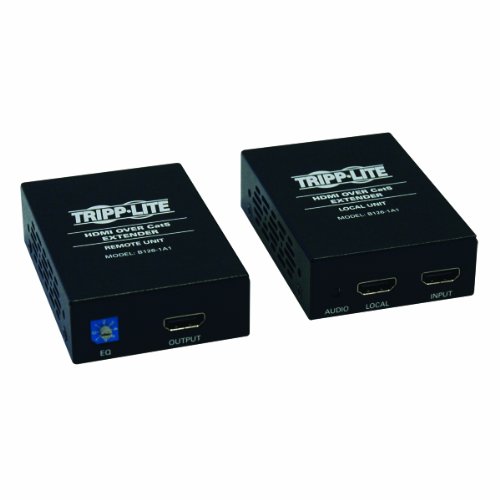

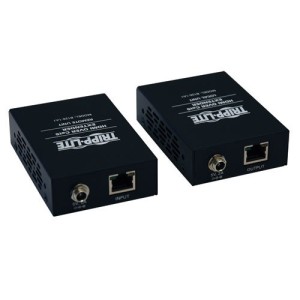

Tripp Lite HDMI Over Cat5 / Cat6 Extender, Extended Range Transmitter and Receiver for Video and Audio 1920×1200 1080p at 60Hz(B126-1A1)

Product Description

The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite’s N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.
Extends a HDMI signal up to 200 ft. at 1080i (60Hz); or, up to 150 ft. at 1080p (60Hz) when using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-series)

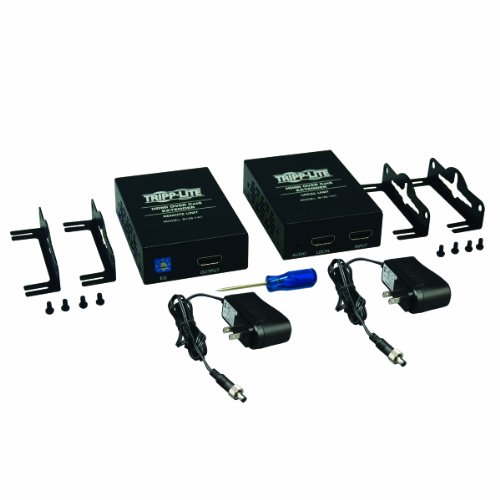

No need to make separate purchases; kit includes both local and remote units
Remote unit features a built-in Equalization setting, allowing for adjustment of the video image
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
Supports 24-bit True Color (8-bits per channel); HDCP and 3D compliant
Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit
